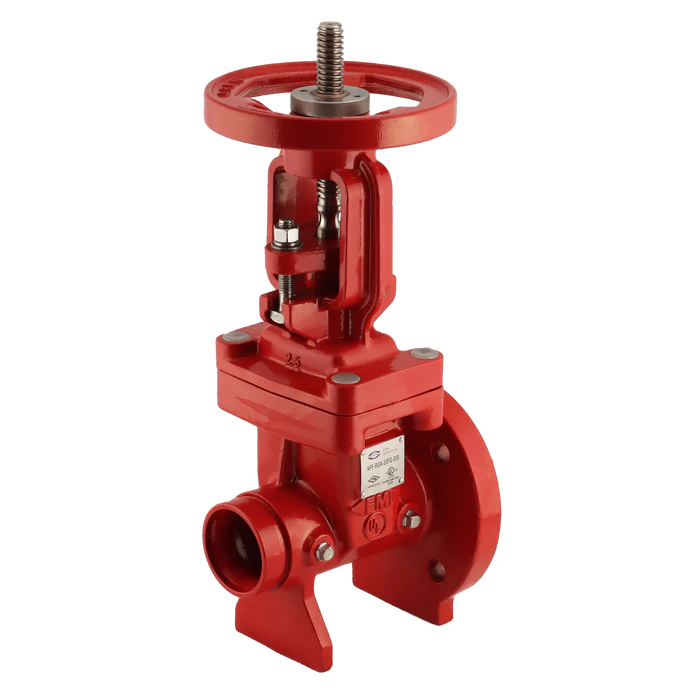

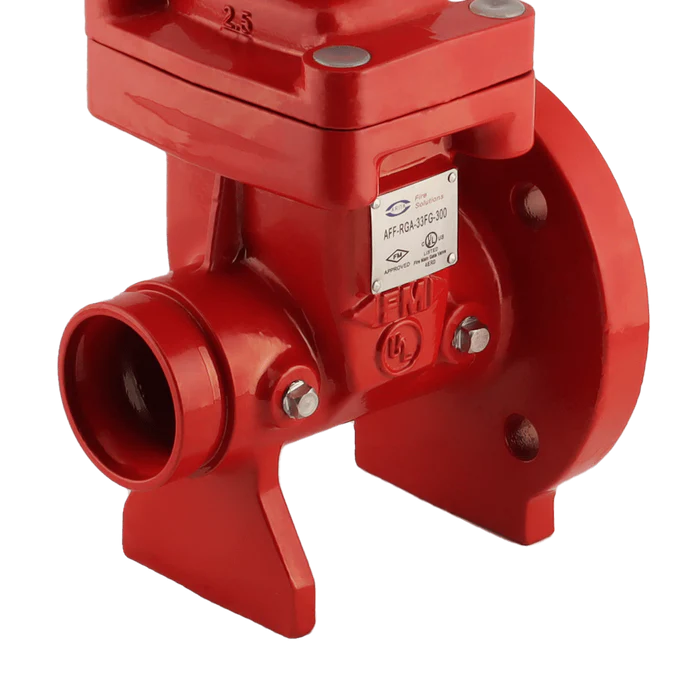

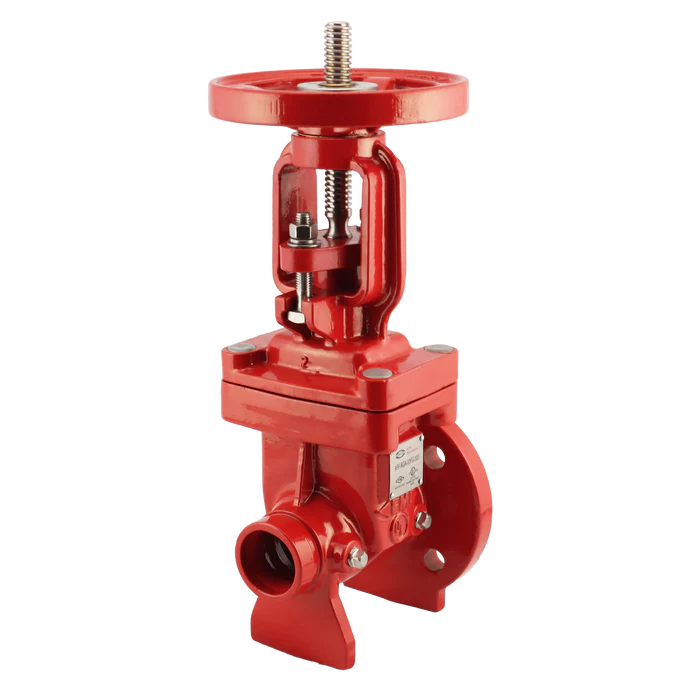

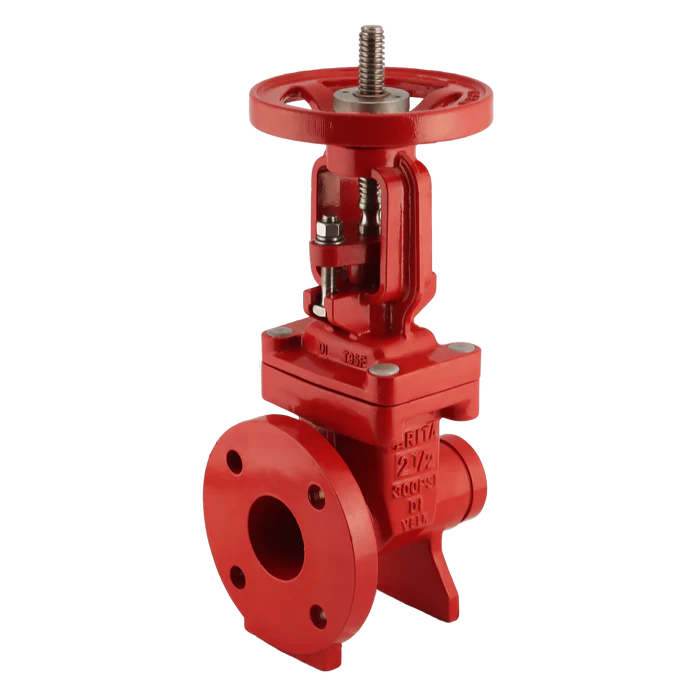

Arita UL/FM Fire Protection OS&Y Gate Valve 300PSI Flange Groove

Fire Protection Resilient Seat OS&Y Gate Valve Flange Groove
Outside stem and yoke rising stem gate valve by Arita Fire Solutions, with full encapsulated EPDM coated wedge design to ensure drop-tight sealing and reduction of wear and jamming. Customary stem notch for switch installation and two factory plugged tapping bosses on valve body are some of the on-site application friendly designs.

Certification: UL/FM
Model: RGA33 Series
Design Standard: AWWA C509/C515
Size: 2"-12"
Rating: 300 PSI
Body: Ductile Iron
Bonnet: Ductile Iron
Body/Bonnet Coating: Epoxy Resin Fusion Bonded
Stem: Stainless Steel 304
Wedge: EPDM Coated Ductile Iron
Packing PTFE
Gasket: EPDM Rubber
O-Ring: EPDM Rubber
Stem Nut: Bronze
Bolt, Nut, Plug: Stainless Steel 304
Connection: Flange Groove End

Fire Protection Resilient Seat OS&Y Gate Valve Flange Groove
Outside stem and yoke rising stem gate valve by Arita Fire Solutions, with full encapsulated EPDM coated wedge design to ensure drop-tight sealing and reduction of wear and jamming. Customary stem notch for switch installation and two factory plugged tapping bosses on valve body are some of the on-site application friendly designs.

Certification: UL/FM
Model: RGA33 Series
Design Standard: AWWA C509/C515
Size: 2"-12"
Rating: 300 PSI
Body: Ductile Iron
Bonnet: Ductile Iron
Body/Bonnet Coating: Epoxy Resin Fusion Bonded
Stem: Stainless Steel 304
Wedge: EPDM Coated Ductile Iron
Packing PTFE
Gasket: EPDM Rubber
O-Ring: EPDM Rubber
Stem Nut: Bronze
Bolt, Nut, Plug: Stainless Steel 304
Connection: Flange Groove End
